Description
Description:

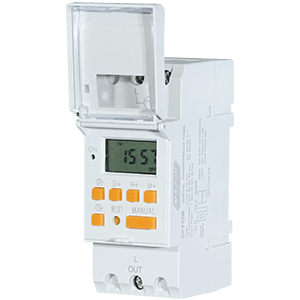

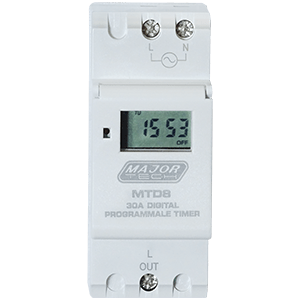

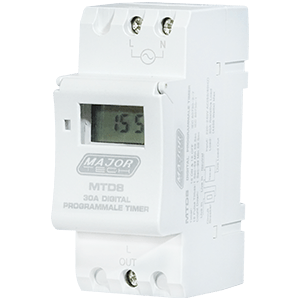

The MTD8 is a 30A 16 On/Off Digital Programmable Timer that is easy-to-use, quick to set and will maximize your savings. When installing the MTD8 for the first time, press the reset button to activate the timer.
The introduction of a timer will improve your energy savings up to 66%. Switching the geyser off/on manually is not good practice as circuit breakers are not designed to be switched often and will eventually damage which can be costly to replace.
Features:
• Din Rail & Samite/ Mini Rail Compatible
• Advanced weekly settings
• Repeat programs with 16 ON/OFF settings, 18 pulse settings, and a manual ON/OFF switch
• Lithium battery back up in the event of a power failure
• MANUAL button changes between Manual ON/OFF, ON AUTO and AUTO OFF
• Terminology: ON (Always ON), OFF (Always OFF), AUTO ON (Timer remains ON until the next OFF programmed
setting) / AUTO OFF (Timer remains OFF until next programmed ON setting and turns OFF as per programmed
OFF settings)
• AUTO OFF – Automatically turns the timer ON and OFF as per the programmed settings
• While programming any function, 30 seconds of inactivity will exit all setting menus
Technical Data:
• Voltage Rating: 220V – 240V AC 50/60Hz
• Voltage Limit: ±10%
• Resistive Loads (Max): 30A
4400W
• Minimum Interval: 1 minute
• Countdown Interval: 1 second – 99 minutes & 59 seconds
• 18 Pulse Intervals: 1 second – 59 minutes & 59 seconds
• Ambient temperature: -10°C ~ 40°C
• Ambient Humidity: 35%RH ~ 85%RH
• Weight: 150g
• Certification: IEC60730-1, IEC60730-2-7
