Description

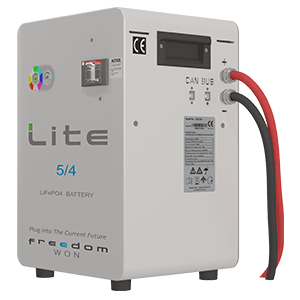

Freedom Won Lite Home 5/4 LiFePO4 Battery
Li-ion Battery Pack, 48V, 5kWh Capacity
The Freedom Won Lite Home LiFePO4 battery is the perfect high quality battery for all your residential and industrial solar solutions.
Technical Data:
- Total Energy Capacity: 5kWh
- Energy available at 80% DOD: 4kWh
- Energy available at 90% DOD: 4.5kWh
- Current Capacity: 100Ah
- Nominal Voltage: 52V to suit 48V Inverters, Min 47V, Max 56V
- Continuous Charge & Discharge Rate: 1C = 100A
- Service Life: > 5500 cycles @ 80% DOD (Depth of Discharge)
- Weight: 49kg
- Dimensions: 500 x 340 x 290 mm
- Enclosure: Aluminium, powder coated white front, rated for indoor use
- DC Connection: 50mm^2 cable x 1.8m
- Control Interface: RJ45 Socket x 2: CAN Bus for interfacing with compatible inverters and system controllers, Communication for connection of parallel batteries. (NOTE: All parallel batteries must be all of the same model)
- Protection: Shunt trip circuit breaker, Overcurrent, Under voltage, Over Voltage, Temperature
Human Interface: State of Charge (0 to 100%), Error light, Error reset button, USB plug for programming - Features:
This battery is compatible with most inverters on the market
These batteries can be expanded up to 20 batteries in parallel
10-year local manufacturer’s warranty
Support high discharge and charge power
Batteries can be charged in shorter time due to high charge capability
